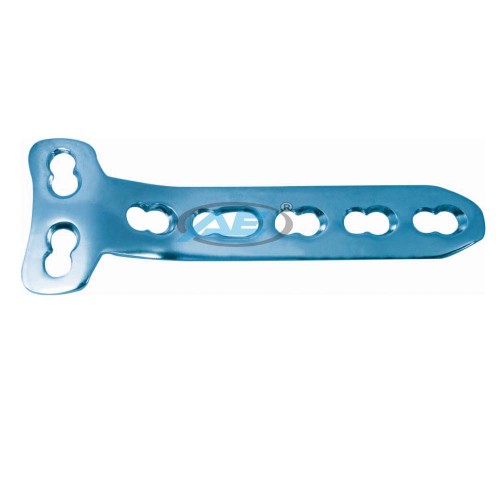

4.5/5 mm Locking T Buttress Plate Specification

• Plates available holes are 3, 4, 5, 6, 7, 8 and 10.
• Plate has combi holes and round holes. Combi holes allow fixation with locking screws in the threaded section and cortex screws in the dynamic compression unit section for compression.
• The shaft holes accept 5 mm locking screws in the threaded portion or 4.5 mm cortical screws or 5 mm Locking cancellous screws in the compression portion. Distal locking holes in plate head accept 5 mm locking screws or 4.5 mm cortical screws.
• 4.5/5 mm Locking T Buttress Plate allow implant placement to address the individual fracture pattern.
• Choice of different lengths of plate eliminates the need to cut plates.
• Pre-contoured plate to match anatomical shape.
• Available in both Titanium and Stainless steel.
